泰科TE工業RJ45插孔

發布時間：2024-01-22 11:35:50 瀏覽：1638

集成磁性的工業RJ45插孔為工業以太網提供了從電纜到物理層的高度集成的連接解決方案。將磁性材料集成到插孔中可以大大改善EMI噪聲屏蔽，從而實現更可靠的連接。具有1x1直接和R / A、1x2、2x1外形因素的標準化產品組合可滿足許多工業應用，使客戶能夠找到他們正在尋找的解決方案。特定的工業要求，如通過提高耐腐蝕性，延長溫度范圍和延長產品壽命的高可靠性都得到解決，包括支持最新的回流焊生產工藝。

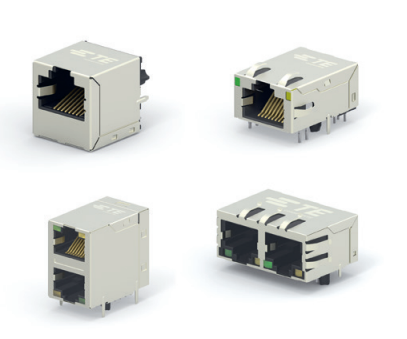

泰科TE工業RJ45插孔

關鍵特性

?延長溫度。范圍-40…+85°C

?最低產品壽命要求為10年

?260°C回流管腳在膏焊

?鍍層厚度0.76 μ m [30 μ英寸]黃金超過1,27 μ m [50 μ英寸]鎳

?提高EMI完整性和信號完整性性能

?支持電流和電壓模式物理芯片

應用:

?所有需要以太網的工業應用

?所有工業設備與RJ45連接

?工業計算機

?中心

?路由器

?無線接入點

?公司的

?開關

?所有支持以太網的設備

選型：

Description	Speed Ports Orientation			Tab LEDs Packaging			Solder Pin and Shield Length [mm]	TE PN
RJ45 JACK INT.MAG.10/1001x1 INV.	10/100	1	R/A	Up	No	T&R	19	2301994-1
RJ45 JACK INT.MAG.10/100 LED 1x1 INV	10/100	1	R/A	Up	Yes	T&R	19	2301994-2
RJ45 JACK INT.MAG.10/1001x1 INV	10/100	1	R/A	Up	No	T&R	30	2301994-3
RJ45 JACK INT.MAG.10/1001x1	10/100	1	R/A	Down	No	T&R	19	2301994-4
RJ45 JACK INT.MAG.1Gb 1x1 INV.	1G	1	R/A	Up	No	T&R	19	2301994-5
RJ45 JACK INT.MAG.1Gb 1x1	1G	1	R/A	Down	No	T&R	19	2301994-6
RJ45 JACK INT.MAG.1Gb 1x1	1G	1	R/A	Down	No	T&R	19	301994-
RJ45 JACK INT.MAG.10/100 LED 1x1 INV	10/100	1	R/A	Up	Yes	T&R	19	2301994-8
RJ45 JACK INT.MAG.10/100 LED 1x1	10/100	1	R/A	Down	Yes	T&R	19	2301994-
RJ45 JACK INT.MAG.1Gb LED 1x1	1G	1	R/A	Down	Yes	T&R	19	1-2301994-0
RJ45 JACK INT.MAG.1Gb LED 1x1 INV.low	1G	1	R/A	Up	Yes	T&R	17	1-2301994-1
RJ45 JACK INT.MAG.1Gb LED 1x1	1G	1	R/A	Down	Yes	T&R	19	-2301994-2
RJ45 JACK INT.MAG.10/1001x1	10/100	1	R/A	Down	No	T&R	30	-2301994-
RJ45 JACK INT.MAG.1Gb 1x1 INV.	1G	1	R/A	Up	No	T&R	30	2-2301994-0
RJ45 JACK INT.MAG.1Gb 1x1	1G	1	R/A	Down	No	T&R	30	2-2301994-1
RJ45 JACK INT.MAG.1Gb 1x1	1G	1	R/A	Down	No	T&R	30	2-2301994-2
RJ45 JACK INT.MAG.1Gb LED 1x1	1G	1	R/A	Down	Yes	T&R	30	2-2301994-3
RJ45 JACK INT.MAG.1Gb LED 1x1	1G	1	R/A	Down	Yes	T&R	30	2-2301994-4
RJ45 JACK INT.MAG.1Gb 1x1 VERT.	1G	1	Vertical	一	No	T&R	19	2301995-
RJ45 JACK INT.MAG.10/1001x1 VERT.	10/100	1	Vertical	一	No	T&R	19	2301995-2
RJ45 JACK INT.MAG.10/100 LED 1x1 VERT.	10/100	1	Vertical	一	Yes	T&R	19	2301995-3
RJ45 JACK INT.MAG.1Gb LED 1x1 VERT.	1G	1	Vertical	一	Yes	T&R	19	2301995-4
RJ45 JACK INT.MAG.10/1001x2 INV	10/100	1x2	R/A	Up	No	T&R	19	2301996-1
RJ45 JACK INT.MAG.10/1001x2	10/100	1x2	R/A	Down	No	T&R	19	2301996-2
RJ45 JACK INT.MAG.1Gb 1x2 INV	1G	1x2	R/A	Up	No	T&R	19	2301996-3
RJ45 JACK INT.MAG.1Gb 1x2	1G	1x2	R/A	Down	No	T8R	19	2301996-4
RJ45 JACK INT.MAG.10/100 LED 1x2 INV.	10/100	1x2	R/A	Up	Yes	T&R	19	2301996-5
RJ45 JACK INT.MAG.10/100 LED 1x2	10/100	1x2	R/A	Down	Yes	T&R	19	2301996-6
RJ45 JACK INT.MAG.1Gb LED 1x2 INV	1G	1x2	R/A	Up	Yes	T&R	17	2301996-7
RJ45 JACK INT.MAG.1Gb LED 1x2	1G	1x2	R/A	Down	Yes	T&R	19	2301996-8
RJ45 JACK INT.MAG.10/1001x1 INV	10/100	1	R/A	Up	No	Tray	19	5-2301994-1
RJ45 JACK INT.MAG.10/100 LED 1x1 INV	10/100	1	R/A	Up	Yes	Tray	19	5-2301994-2
RJ45 JACK INT.MAG.10/1001x1 INV.	10/100	1	R/A	Up	No	Tray	30	0-2301994-3
RJ45 JACK INT.MAG.10/1001x1	10/100	1	R/A	Down	No	Tray	19	5-2301994-4
RJ45 JACK INT.MAG.1Gb 1x1 INV.	1G	1	R/A	Up	No	Tray	19	5-2301994-5
RJ45 JACK INT.MAG.1Gb 1x1	1G	1	R/A	Down	No	Tray	19	5-2301994-6
RJ45 JACK INT.MAG.1Gb 1x1	1G	1	R/A	Down	No	Tray	19	5-2301994-7
RJ45 JACK INT.MAG.10/100 LED 1x1 INV	10/100	1	R/A	Up	Yes	Tray	19	5-2301994-8
RJ45 JACK INT.MAG.10/100 LED 1x1	10/100	1	R/A	Down	Yes	Tray	19	5-2301994-9
RJ45 JACK INT.MAG.1Gb LED 1x1	1G	1	R/A	Down	Yes	Tray	19	6-2301994-0
RJ45 JACK INT.MAG.1Gb LED 1x1 INV.-low	1G	1	R/A	Up	Yes	Tray	17	6-2301994
RJ45 JACK INT.MAG.1Gb LED 1x1	1G	1	R/A	Down	Yes	Tray	19	6-2 1994-
RJ45 JACK INT.MAG.10/1001x1	10/100	1	R/A	Down	No	Tray	30	6-2301994-9
RJ45 JACK INT.MAG.1Gb 1x1 INV.	1G	1	R/A	Up	No	Tray	30	7-2301994-0
RJ45 JACK INT.MAG.1Gb 1x1	1G	1	R/A	Down	No	Tray	30	7-2301994-1
RJ45 JACK INT.MAG.1Gb 1x1	1G	1	R/A	Down	No	Tray	30	7-2301994-2
RJ45 JACK INT.MAG.1Gb LED 1x1	1G	1	R/A	Down	Yes	Tray	30	7-2301994-3
RJ45 JACK INT.MAG.1Gb LED 1x1	1G	1	R/A	Down	Yes	Tray	30	7-2301994-4
RJ45 JACK INT.MAG.1Gb 1x1 VERT.	1G	1	Vertical	一	No	Tray	19	5-2301995-
RJ45 JACK INT.MAG.10/1001x1VERT	10/100	1	Vertical	一	No	Tray	19	5-2301995-2
RJ45 JACK INT.MAG.10/100 LED 1x1VERT	10/100	1	Vertical	一	Yes	Tray	19	5-2301995-3
RJ45 JACK INT.MAG.1Gb LED 1x1 VERT	1G	1	Vertical	一	Yes	Tray	19	5-2301995-4
RJ45 JACK INT.MAG.10/1001x2 INV	10/100	1x2	R/A	Up	No	Tray	19	5-2301996-
RJ45 JACK INT.MAG.10/1001x2	10/100	1x2	R/A	Down	No	Tray	19	5-2301996-2
RJ45 JACK INT.MAG.1Gb 1x2 INV	1G	1x2	R/A	Up	No	Tray	19	5-2301996-3
RJ45 JACK INT.MAG.1Gb 1x2	1G	1x2	R/A	Down	No	Tray	19	5-2301996-4
RJ45 JACK INT.MAG.10/100 LED 1x2 INV	10/100	1x2	R/A	Up	Yes	Tray	19	5-2301996-5
RJ45 JACK INT.MAG.10/100 LED 1x2	10/100	1x2	R/A	Down	Yes	Tray	19	5-2301996-6
RJ45 JACK INT.MAG.1Gb LED 1x2 INV	1G	1x2	R/A	Up	Yes	Tray	17	5-2301996-7
RJ45 JACK INT.MAG.1Gb LED 1x2	1G	1x2	R/A	Down	Yes	Tray	19	5-2301996-8
RJ45 JACK INT.MAG.10/1002x1	10/100	2x1	R/A	Down	No	Tray	19	2301997-2
RJ45 JACK INT.MAG.1Gb 2x1	1G	2x1	R/A	Down	No	Tray	19	2301997-4
RJ45 JACK INT.MAG.10/100 LED 2x1	10/100	2x1	R/A	Down	Yes	Tray	19	2301997-5
RJ45 JACK INT.MAG.1Gb LED 2x1	1G	2x1	R/A	Down	Yes	Tray	19	2301997-7
RJ45 JACK INT.MAG.10/100 LED 2x1	10/100	2x1	R/A	Down	Yes	Tray	30	2301997-9
