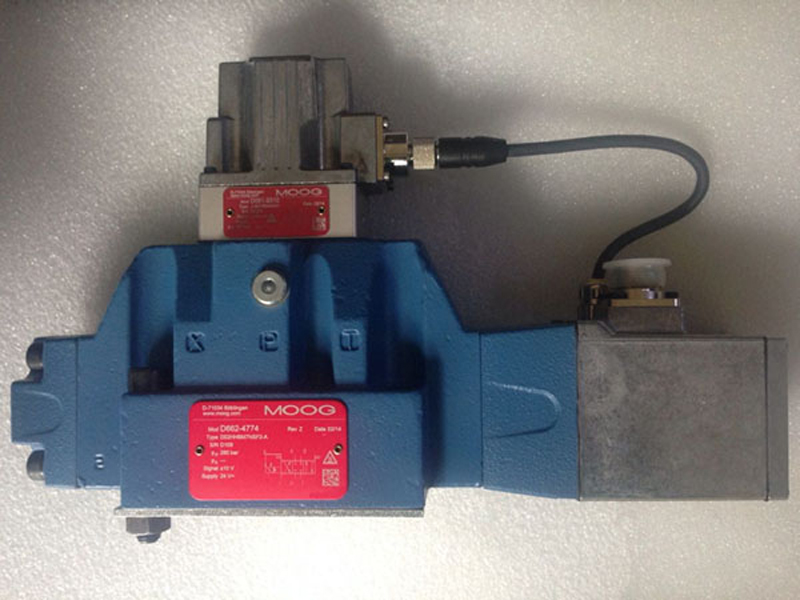

先導式比例伺服閥D661/D662/D663/D664/D665系列

發布于：2025-12-26 14:21:07

品牌名稱：Moog

訂貨周期：6-8周
立即訂購

重要參數：

最大工作壓力：350 bar (5000 psi)

供電電壓：24 VDC (18-32 VDC范圍)

額定信號：±10V 或 ±10mA

電氣連接：6+PE 或 11+PE接口

產品詳情

Model	Type Designation	Rated Flow gpm [l/min] @ 75 psi [5 bar] per land		Description
D661-2745E	P60HAAM4NSF2	16	60	Spool type:4-way,critical lap,linear;ServoJet? pilot
D661-4737	P60HDAM4NSF2-O	16	60	Spool type:4-way,10% overlap,linear;ServoJet? pilot
D661-2722E	P80HAAM4NSF2	21	80	Spool type:4-way,critical lap,linear;ServoJet? pilot
D661-4732	P80HDAM4NSF2-O	21	80	Spool type:4-way,10% overlap,linear;ServoJet? pilot

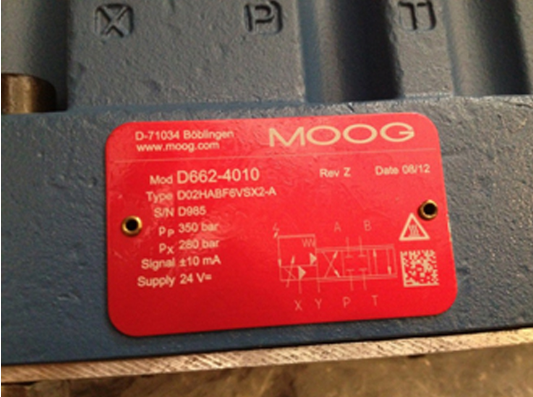

D662-2714E	D01HABM6NSF2	40	150	Spool type:4-way,critical lap,linear;High-flow ServoJet? pilot
D662-4724	D01HDBM6NSF2-O	40	150	Spool type:4-way,10% overlap,linear;High-flow ServoJet? pilot
D662-2718E	D02HABM6NSF2	66	250	Spool type:4-way,critical lap,linear;High-flow ServoJet? pilot
D662-2722E	D02HDBM6NSF2	66	250	Spool type:4-way,10% overlap,linear;High-flow ServoJet? pilot
D663-2709E	L03HABM6NSF2	92	350	Spool type:4-way,critical lap,linear;High-flow ServoJet? pilot
D663-4705	L03HDBM6NSF2-O	92	350	Spool type:4-way,10% overlap,linear;High-flow ServoJet? pilot
D664-2708E	L05HABM6NSF2	145	550	Spool type:4-way,critical lap,linear;High-flow ServoJet? pilot
D664-4714	L05HDBM6NSF2-O	145	550	Spool type:4-way,10% overlap,linear;High-flow ServoJet? pilot
D665E2301	K15FAHO6NSF2	400	1500	Spool type:4-way,critical lap,linear;2-stage MFB pilot
D665-4602	K15FDHO6NSF2-O	400	1500	Spool type:4-way,10% overlap,linear;2-stage MFB pilot

	D661	D662	D663	D664	D665
控制功能	Flow
安裝模式	ISO 4401 Size 05 (NG10)	ISO 4401 Size 07 (NG16)	ISO 4401 Size 08 (NG25)	ISO 4401 Size 08 (NG25+)	ISO 4401 Size 10 (NG32)
水力數據
額定流量為每塊土地?p 5巴（75 psi）	30 to 80 l/min	150 to 250 l/min	350 l/min	550 l/min	1000 - 1500 l/min

	(8 to 21.1 gpm)	(39.6 to 66 gpm)	(92.4 gpm)	(145.3 gpm)	(264.1 to 396.2 gpm)
最大流量	180 l/min (47.5 gpm)	600 l/min (158 gpm)	1,500 l/min (396.2 gpm)	1,500 l/min (396.2 gpm)	3,600 l/min (951 gpm)
最大作壓力	Port P, A, B - 350 bar (5,000 psi)
	Port T with Y internal - depends on Pilot Valve
	Port T with Y external - 350 bar (5,000 psi)
0到100%步進的步進響應時間	18 to 28 ms	9 to 44 ms	13 to 37 ms	17 to 48 ms	10 to 35 ms
電氣數據
電源電壓	24 VDC (18 to 32 VDC)
額定信號選項	+/-10 V, +/-10 mA
電氣連接器	6+PE, 11+PE
